Solar Earthing & Lightning Protection Accessories
Engineered to IS 3043 & IS/IEC 62305.
DFMHUB manufactures and supplies ARK Make certified solar earthing and external lightning protection hardware for utility-scale solar farms, industrial rooftop PV arrays, and floating solar installations across India.
Why Coordinated Earthing & Lightning Protection Matter in Solar Plants
Utility-scale solar farms, industrial rooftop installations, and floating PV arrays encompass thousands of conductive module frames, high-voltage DC string cables, inverters, and sensitive SCADA networks spread over wide, exposed terrain.
Step & Touch Potential Protection for Field Personnel
In multi-megawatt solar plants, ground fault currents create dangerous localized potential gradients. An engineered equipotential grid dissipates fault energy safely to prevent shock hazards for O&M teams.
Galvanic Corrosion & Positive Contact Integrity
Combining aluminium module frames with galvanized or copper grounding without certified bimetallic clamps triggers electrochemical corrosion, resulting in high-resistance hotspots and fire risks.
Direct Strike & Electromagnetic Pulse (LEMP) Defense
A lightning strike to an unshielded PV table propagates destructive transient surges down DC cables into central inverters and tracker electronics. Coordinated air-terminals and SPDs eliminate catastrophic downtime.

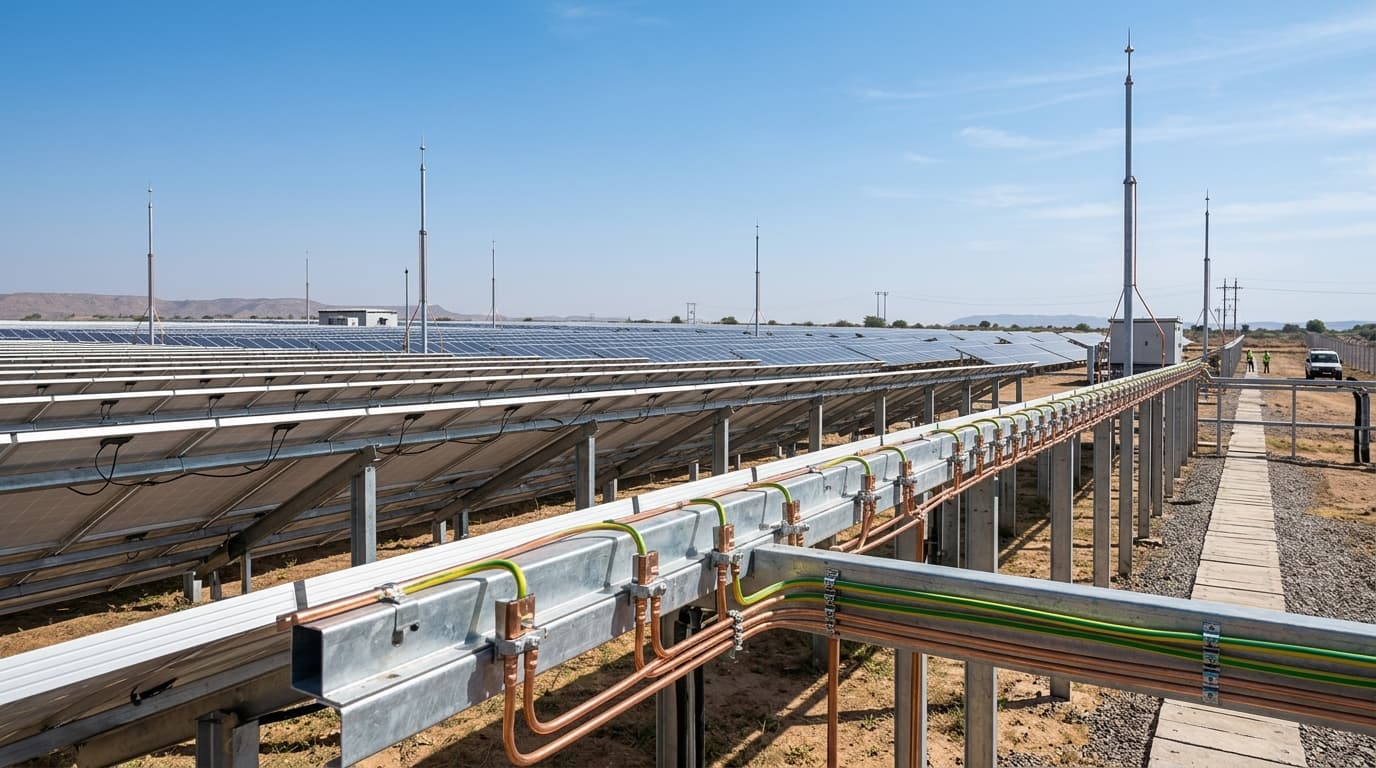

ARK Make BOS clamps & conductors installed across multi-megawatt solar plants.
There is no single universal earthing layout suitable for every solar project. DFMHUB reviews your plant layout, soil resistivity, DC string architecture, and structural geometry to provide an exact, standards-compliant BOQ.
The Codes Every ARK Make Solar System Is Built To
Designed as per IS/IEC 62305, IS 3043, and tested in accordance with the IEC 62561 series, ARK Make accessories ensure durable safety across diverse Indian soil chemistries and climatic zones.
Protection Against Lightning
Governs lightning risk assessment, rolling sphere air-termination geometry, down-conductor spacing, and LEMP protection for PV fields.
Code of Practice for Earthing
Indian standard detailing grounding grid design, fault-current dissipation, touch/step voltage safety, and electrode specifications.
LPS Components (LPSC)
Defines testing and construction requirements for clamps, bonding connectors, conductors, earth pit chambers, and soil enhancing compounds.
Solar Photovoltaic (PV) Systems
Specifies electrical installation safety rules, equipotential bonding requirements, and DC-side isolation for solar PV power systems.
Surge Protective Devices (SPDs)
Governs performance, testing, and selection of Type 1 & Type 2 SPDs connected to the DC side of solar installations up to 1500V.
Technical Safety Standards
Central Electricity Authority mandatory statutory guidelines for the safety and grounding of grid-tied renewable generation plants in India.
ENGINEERED FOR COMPLIANCE. BUILT FOR SOLAR LIFECYCLE RELIABILITY.
Every ARK component is delivered with verifiable mill test certificates (MTC), galvanising test reports, and IEC 62561 type-test records required for CEA, DISCOM, and Third-Party Technical Audits.
ARK Solar Earthing & Bonding Hardware Catalog
Manufactured with high-conductivity materials and robust corrosion protection for repeatable, fault-tolerant solar plant connections.
BOS Earthing Clamp
ARK-HG01Bonding and earthing connection for compatible solar module frames or mounting structures where positive mechanical electrical continuity is specified.
GI Earthing Strip
ARK-GI SeriesHot-dip galvanised steel flat strip for main array perimeter earthing grids and supplementary bonding in accordance with IS 3043.
Copper Earthing Strip
ARK-CU Series99.9% pure electrolytic tough pitch (ETP) copper strip for inverter rooms, transformer stations, and high-conductivity grounding busbars.
10 mm Copper Bonded Conductor
ARK-CU10Molecularly bonded copper over high-tensile steel core for array earthing rings, down conductors, and buried grid interconnections.
Earth Pit Inspection Cover
ARK-EP01Heavy-duty poly-plastic & FRP earth inspection chamber providing quick access for regular earth resistance measurement and maintenance checks.
Chemical Earthing Compound
ARK-CH01Environmentally safe, carbon & mineral-based soil enhancement compound engineered to maintain low earth resistance in dry/sandy solar terrain.
Equipotential Bonding Bar
ARK-EQ01Centralised copper busbar with disconnecting link for bonding string inverters, tracker motors, DC combiner boxes, and structure rings.
SS & GI U-Bolt Clamp
ARK-UB01Precision mechanical clamp for joining conductors to pipe-type foundation piles, module mounting torque tubes, and driven earth rods.
Four-Way Cross Connectors
ARK-CRS SeriesHeavy-duty cross connector for secure orthogonal jointing of flat strips and round conductors in grid mesh ground layouts.
Custom Solar Structure Clamps
Custom ARK SeriesTailored bonding brackets engineered for specific tracker torque tubes, fixed-tilt purlins, and specialized solar structural profiles.
| Component Name | ARK Model Code | Solar Project Function |
|---|---|---|
| BOS Earthing Clamp | ARK-HG01 | Bonding and earthing connection for compatible solar module frames or mounting structures where positive mechanical electrical continuity is specified. |
| GI Earthing Strip | ARK-GI Series | Hot-dip galvanised steel flat strip for main array perimeter earthing grids and supplementary bonding in accordance with IS 3043. |
| Copper Earthing Strip | ARK-CU Series | 99.9% pure electrolytic tough pitch (ETP) copper strip for inverter rooms, transformer stations, and high-conductivity grounding busbars. |
| 10 mm Copper Bonded Conductor | ARK-CU10 | Molecularly bonded copper over high-tensile steel core for array earthing rings, down conductors, and buried grid interconnections. |
| Earth Pit Inspection Cover | ARK-EP01 | Heavy-duty poly-plastic & FRP earth inspection chamber providing quick access for regular earth resistance measurement and maintenance checks. |
| Chemical Earthing Compound | ARK-CH01 | Environmentally safe, carbon & mineral-based soil enhancement compound engineered to maintain low earth resistance in dry/sandy solar terrain. |
| Equipotential Bonding Bar | ARK-EQ01 | Centralised copper busbar with disconnecting link for bonding string inverters, tracker motors, DC combiner boxes, and structure rings. |
| SS & GI U-Bolt Clamp | ARK-UB01 | Precision mechanical clamp for joining conductors to pipe-type foundation piles, module mounting torque tubes, and driven earth rods. |
| Four-Way Cross Connectors | ARK-CRS Series | Heavy-duty cross connector for secure orthogonal jointing of flat strips and round conductors in grid mesh ground layouts. |
| Custom Solar Structure Clamps | Custom ARK Series | Tailored bonding brackets engineered for specific tracker torque tubes, fixed-tilt purlins, and specialized solar structural profiles. |
ARK External LPS Components for Solar Installations
Type-tested air terminals, conductor clamps, non-penetrating rooftop holders, and lightning event counters.
Air Terminal Finial Rod
ARK-AT01Solid electrolytic copper, aluminium, and stainless-steel interceptor finial with machined multi-point discharge tip.
4m Galvanised Tripod Mast
ARK-AT04Free-standing or fixed elevated tripod air terminal mast for inverter stations, control rooms, and solar farm substations.
Heavy-Duty Base Mounting Plate
ARK-AT16Rigid flat/pitched surface mounting base for securing air terminals to concrete rooftops, transformer walls, and tracker posts.
8 mm Aluminium Down Conductor
ARK-AL08Solid smooth aluminium round conductor wire engineered for rooftop air termination meshes and down conductor routes.
UV-Resistant Parapet Holder
ARK-PH08Engineered nylon/polypropylene clamp designed to guide 8mm round conductor along parapet coping without masonry drilling.
Weighted Flat Roof Conductor Holder
ARK-FL08Concrete-filled or ballast base holder for routing conductors across flat industrial solar rooftops without membrane piercing.
Aluminium Expansion Piece
ARK-EP08Preformed bridge piece designed to absorb linear thermal expansion and contraction across long continuous solar array conductor runs.
Standing-Seam Metal Roof Clamp
ARK-SS01Non-penetrating mechanical clamp designed to lock conductor routes directly onto standing seam metal roof ribs on industrial sheds.
Trapezoidal Profile Roof Clamp
ARK-SS02Conductor holder for trapezoidal ribbed industrial roofs with EPDM weather sealing washers and stainless steel fixings.
Parallel Straight Connector
ARK-SL01Two-screw mechanical joint component for creating continuous electrical links between successive 8-10mm conductor reels.
Disconnecting Test Joint
ARK-TL01Accessible test link box placed at 1.5m above ground to isolate earth termination from the down conductor during maintenance checks.
Lightning Strike Counter
ARK-LC01Non-resettable electromagnetic pulse flash counter recording direct lightning discharge events on the solar plant down-conductor.
Application-Specific Solar Engineering
Different solar installations pose unique environmental and structural challenges. ARK Make accessories are tailored for utility ground mounts, aquatic floating solar arrays, and industrial C&I rooftops.
Ground-Mounted Solar Farms
Utility-scale solar fields span hundreds of acres. Protection focuses on array perimeter ring earthing, low-impedance substation grounding, 4m elevated tripod masts, and BOS module clamps across thousands of tracker rows.
Floating Solar PV Projects
Floating arrays on reservoirs operate in 100% relative humidity with continuous wave motion. Requires highly flexible conductors, 316-grade stainless steel hardware, and specialized shore-to-water transition bonding.
Commercial Rooftop Solar
Industrial sheds require non-penetrating standing seam clamps (ARK-SS01) or ballast roof holders to preserve factory waterproofing warranties while maintaining safe separation distances from existing LPS networks.
ARK Engineered Solar Accessories vs Generic Unspecified Hardware
Solar EPC contractors and project consultants should evaluate whether earthing accessories support the long-term 25-year design life of the solar power plant.
| Evaluation Criteria | ARK Engineered Approach | Generic Unspecified Market Materials |
|---|---|---|
| System Engineering Approach | Engineered solar package mapped to site drawings & IEC 62305 | Random loose parts bought from generic unverified suppliers |
| BOS Clamp Compatibility | Penetrates anodization layer reliably without galvanic corrosion | Often non-standard hardware causing loose contacts & hot-spots |
| Galvanising & Coating Quality | 86+ micron HDG coating & 250+ micron pure copper bonding | Sub-standard zinc or thin electroplating failing in 2–3 years |
| Component Testing Evidence | Tested to applicable IEC 62561 standards with traceable test reports | No type-test certificates; fails consultant technical audits |
| BOQ Line-Item Mapping | Dedicated technical review to eliminate mismatches before dispatch | Supplier provides whatever is in stock; requires site alterations |
| Application Diversity | Tailored ranges for Ground Utility, Floating PV & Industrial Sheds | One-size-fits-all products unsuitable for specialized terrain |
| Pan-India Site Delivery | Coordinated batch dispatches with packing lists to remote project sites | Frequent delivery delays and missing hardware in transport |
