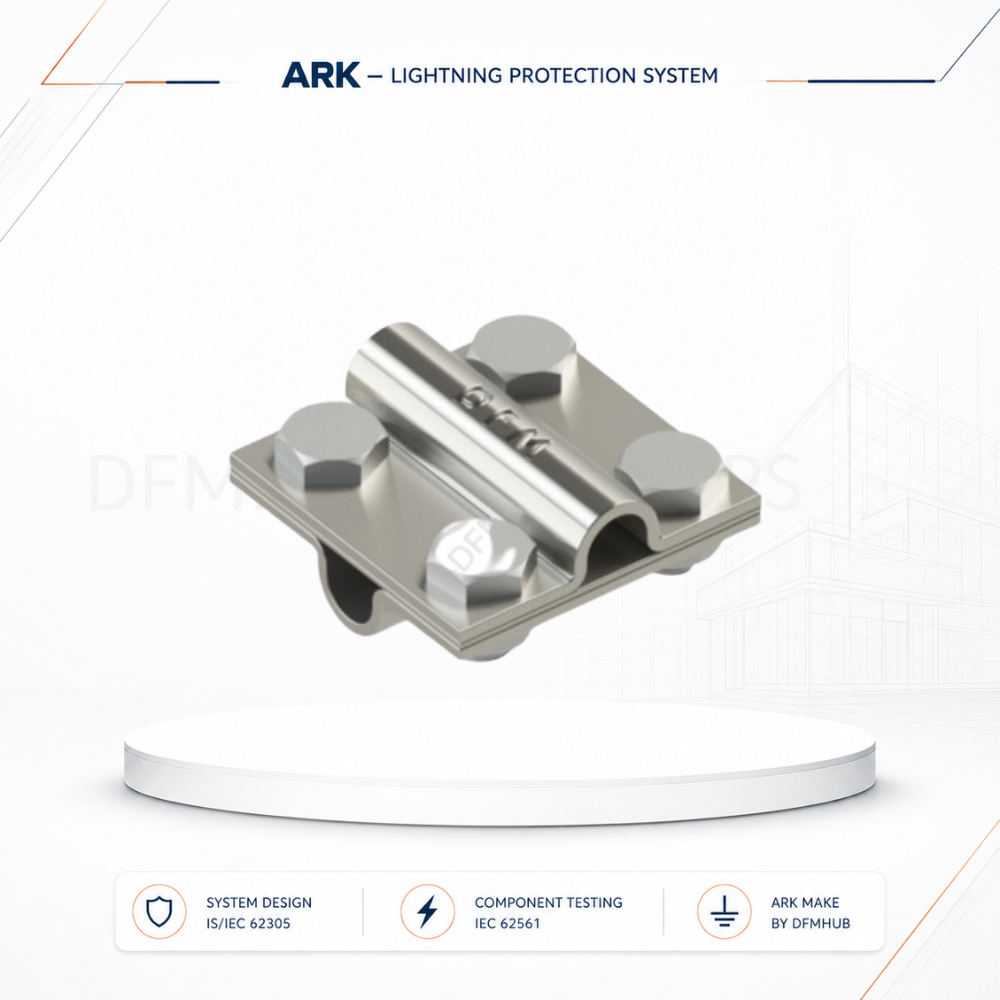

Cross Connector for Rd 8-10 mm

Cross connector ARK-CRS08 designed for compatible 8-10 mm round conductors used in external lightning protection systems. Cross connectors are commonly required where roof conductors intersect in an air-termination mesh, where a branch joins a perimeter conductor or where two round conductors must be mechanically and electrically connected at a crossing. A dedicated cross connector keeps the conductors positioned at the intended intersection and creates a repeatable joint that can be inspected during installation and maintenance.

The connection must be selected based on the actual conductor diameter, conductor material and crossing arrangement. Conductors should sit correctly within the clamp, and hardware should be tightened according to the ARK technical data or approved method statement. Because the connector is stainless steel, the project team should review the contact interface when it is used with aluminium, copper or coated conductors. Material compatibility is especially important on exposed roofs, coastal locations and industrial sites where moisture or pollutants can accelerate corrosion. The connection point should remain free from unnecessary mechanical stress caused by poorly aligned conductor routes.

ARK-CRS08 is part of the ARK External Lightning Protection System by DFMHUB and can be specified alongside ARK 8 mm aluminium conductor, roof holders, parapet clamps and straight connectors. This creates a more coherent roof network and gives consultants a clearly identified component at conductor intersections. For installers, standardized cross connectors reduce the need for improvised overlaps and can improve consistency across large mesh systems. IEC 62561-1 is the relevant component-standard context for metallic LPS connection components such as clamps and connectors. IEC 62305-3 provides the wider requirements for the external lightning protection system. Before approval, verify the actual conductor range, stainless steel grade or declared material, bolt arrangement, tightening requirement, material pairing and applicable ARK test evidence. The final connection layout must follow the approved LPS drawing, because the connector itself does not determine mesh size, protection class or conductor routing.

Engineering confidence: DFMHUB supports Stainless Steel Cross Connector for Rd 8-10 mm (ARK-CRS08) with product identification, dimensional review, material/finish confirmation and order-specific documentation as agreed in the quotation or approved submittal. The component must be selected as part of the complete engineered system, not by product code alone.
