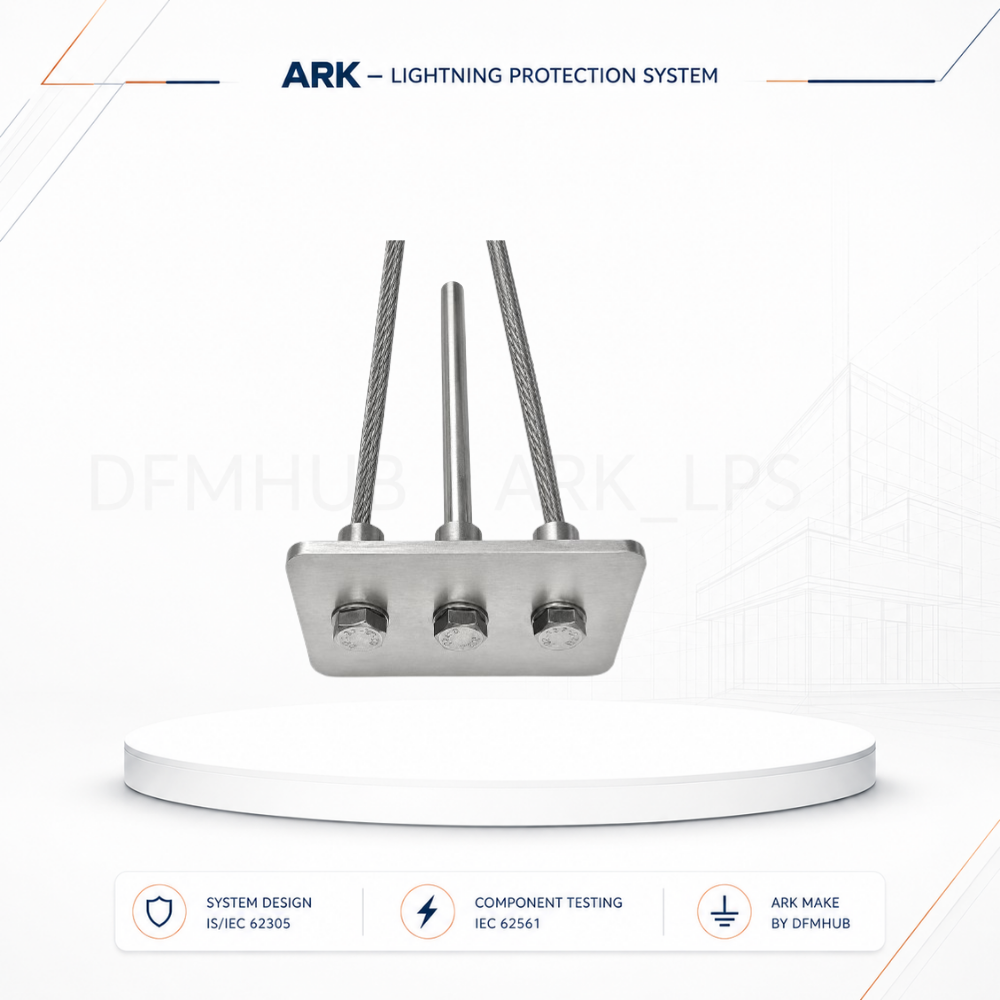

Earthing Stud with 1000mm Pre-welded Stainless-Steel Tail

The Earthing Stud with 1000mm Pre-welded Stainless-Steel Tail (ARK-EF3SS) is an ARK structural earthing component manufactured by DFMHUB in India. It creates an accessible earthing point while extending a factory-prepared stainless-steel tail into the structural bonding network. It is intended for engineered earthing and bonding systems in commercial buildings, industries, data centres, infrastructure, high-rise developments and solar projects. A catalogue code gives procurement and site teams a controlled item to coordinate with the BOQ and approved drawings. An embedded terminal is safety-relevant because it becomes the accessible interface to work that will later be hidden inside concrete. Its position, thread, face, tail arrangement and connection to reinforcement must be defined before shuttering. A misplaced or contaminated terminal can create rework, inaccessible joints or uncertainty during commissioning, even when the terminal itself is correctly manufactured. The terminal should be coordinated on the structural and MEP drawings, with a unique reference where the handover plan requires one. The installer must protect accessible faces during concreting and confirm the concealed connection before the pour. After de-shuttering, the terminal should be cleaned, identified and included in continuity testing. DFMHUB positions ARK as a manufacturer-led system rather than a collection of unrelated trading items. Product drawings, material details, fabrication or assembly steps, dimensional inspection and order-specific documentation can be coordinated before supply. The final submittal should state the exact dimensions, material grades, joining method, finish, tolerances and test evidence required for the selected configuration. This prevents broad marketing claims from replacing project engineering. Key product-page benefits include: • Factory-prepared 1000 mm stainless-steel tail • Defined transition from embedded network to accessible stud • Stainless-steel tail for specified exposure conditions • Simplifies pre-pour coordination and inspection Keep the 1000 mm tail free from sharp kinks and bond it only by the approved method. Protect the stud face and thread during shuttering and casting, then verify identification and continuity after de-shuttering. Selection note: Confirm stud thread, stainless-steel grade, tail section and length, weld qualification, connection method, final location and material compatibility. Coordinate the component with the structural engineer, electrical consultant, MEP contractor and earthing designer before concrete work proceeds. For a quotation, provide product code ARK-EF3SS, quantity, material and dimensions, conductor/rebar interfaces, drawings, project location, inspection requirements and delivery schedule. DFMHUB can then align manufacture, packing and documentation with the approved requirement.
